| | | | | | | | Medium Effer cranes have a lifting capacity between 10 and 30 txm and provide the possibility to create countless configurations according to the specific needs. Effer applies the same technology characterising big cranes also to those of the medium range, to ensure the best performance and an excellent durability thanks to forefront materials and technological solutions. |
| | | DATA SHEET | | DESCRIPTION | UNIT OF MEASURE | 3S | 4S | 5S | 6S | 7S0 | 8S | Max. hydraulic outreach | m | 10,47 | 12,48 | 14,73 | 16,99 | 19,23 | 21,51 | kgm | 33290 | 32790 | 32180 | 31870 | 31395 | 30940 | Max. lifting moment (+20°) | kNm | 327 | 322 | 316 | 313 | 308 | 303 | Slewing arc | (°) | continua | Slewing Capacity-Max slope | % | 8,7 | Working pressure | bar | 350 | Recommended oil delivery | l/min | 100 | Oil tank capacity | l | 160 | Weight of the standard crane (± 2%) | kg | 3775 | 3960 | 4120 | 4270 | 4405 | 4525 |

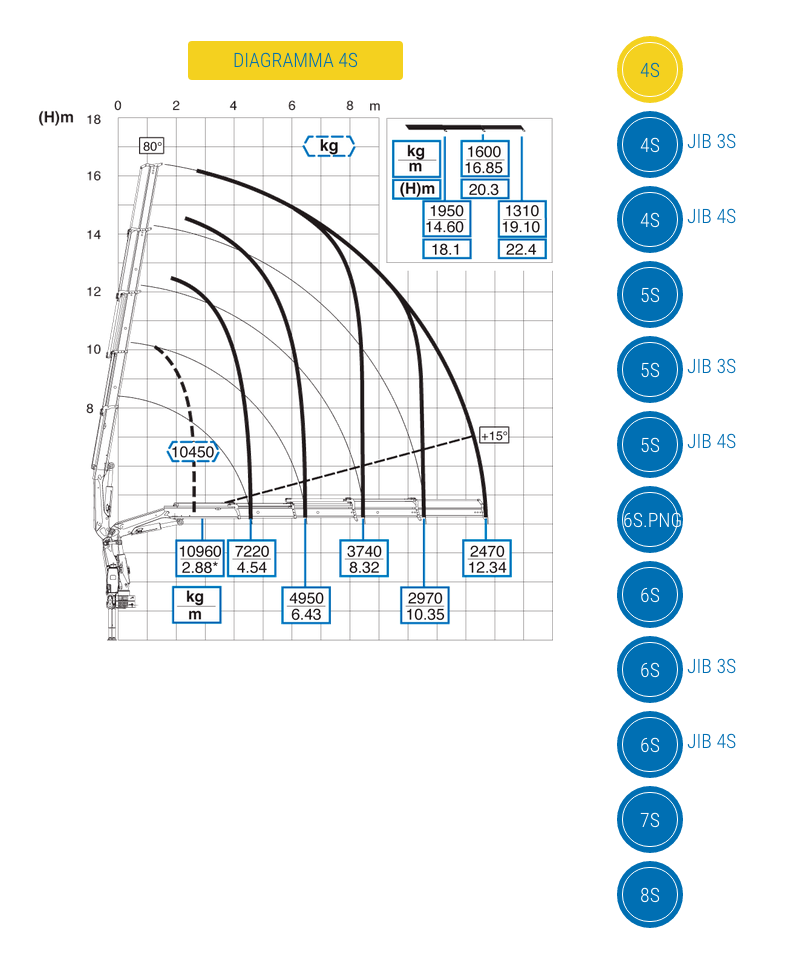

| | | | | | | | | DIAGRAMS | ![](https://image.makewebeasy.net/makeweb/m_1920x0/Ayo5MZhYP/mypic_article/Screen%20Shot%202558-10-09%20at%203_45_00%20PM.png) |

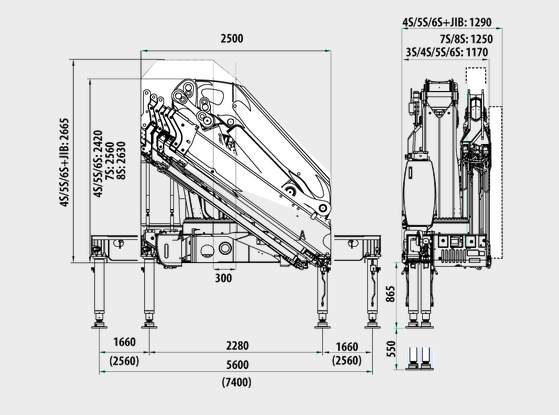

| | | | | | | | | | | | DIMENSIONS | ![](https://image.makewebeasy.net/makeweb/m_1920x0/Ayo5MZhYP/mypic_article/Screen%20Shot%202558-07-13%20at%2011_00_05%20AM.png) |
| | | |
| | File to download | Brochure model | |
|
