| | | | | Small Effer cranes cover the market segment of the lifting class from 2 to 10 txm and are a mix of power and performances for customers looking for an effective and easy-to-use product. The quality of materials and design characterising big and medium Effer cranes can be found also in this product range, to ensure better performances for any type of work. |
| | | DATA SHEET | | DESCRIPTION | UNIT OF MEASURE | 1S | 2S | 3S | 4S | Max. hydraulic outreach | m | 5,44 | 7,21 | 8,98 | 10,77 | Max. lifting moment (+25°) | kgm | 9160 | 8860 | 8615 | 8445 | kNm | 89,85 | 86,91 | 84,51 | 82,84 | Slewing arc | (°) | 380 | Slewing Capacity – Max slope | % | 8,7 | Working pressure | bar | 340 | Recommended oil delivery | l/min | 25 | Oil tank capacity | l | 75 | Weight of the standard crane (± 2%) | kg | 1080 | 1165 | 1245 | 1315 |

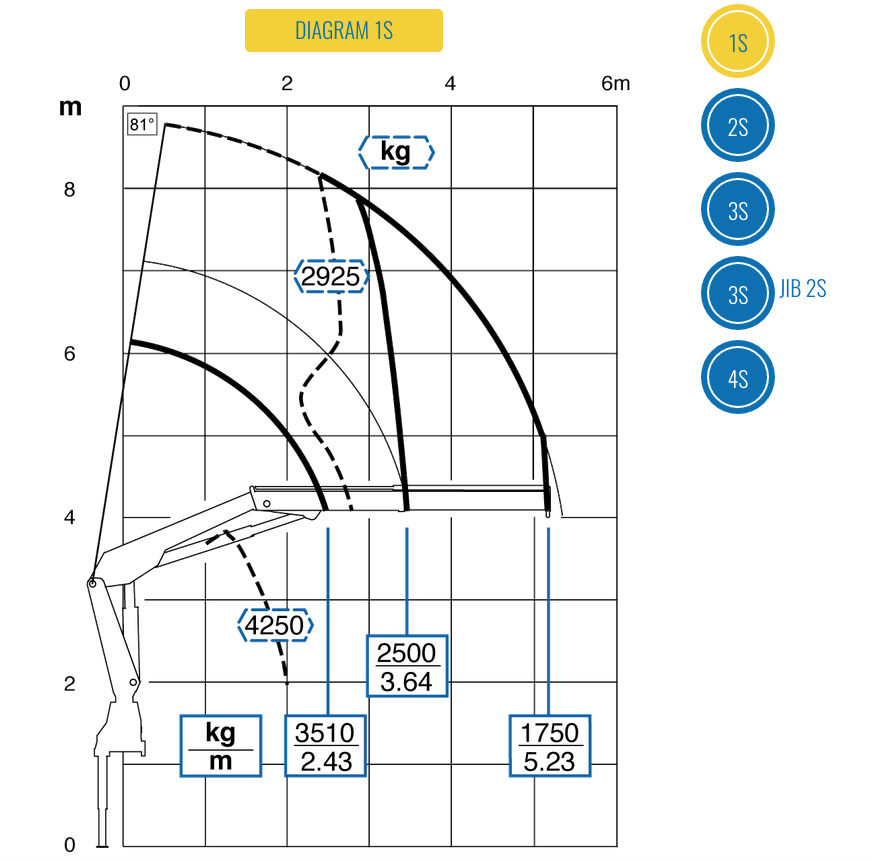

| | | | | DIAGRAMS | ![](https://image.makewebeasy.net/makeweb/m_1920x0/Ayo5MZhYP/mypic_article/Screen%20Shot%202558-06-20%20at%204_54_18%20PM.png) |

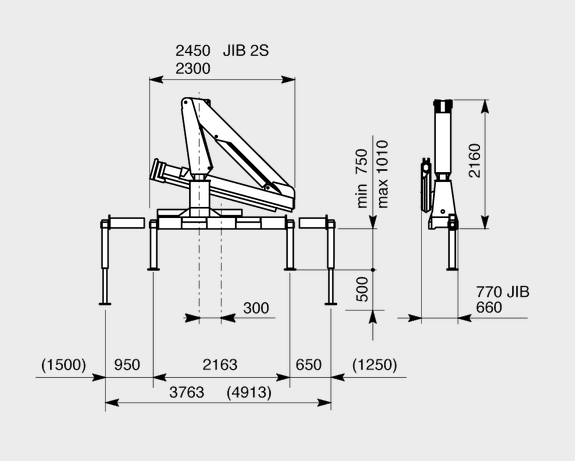

| | | | | | | DIMENSIONS | ![](https://image.makewebeasy.net/makeweb/m_1920x0/Ayo5MZhYP/mypic_article/Screen%20Shot%202558-06-20%20at%204_49_07%20PM.png) | |
| | |
| | File to download | Brochure model | |
| |
|
